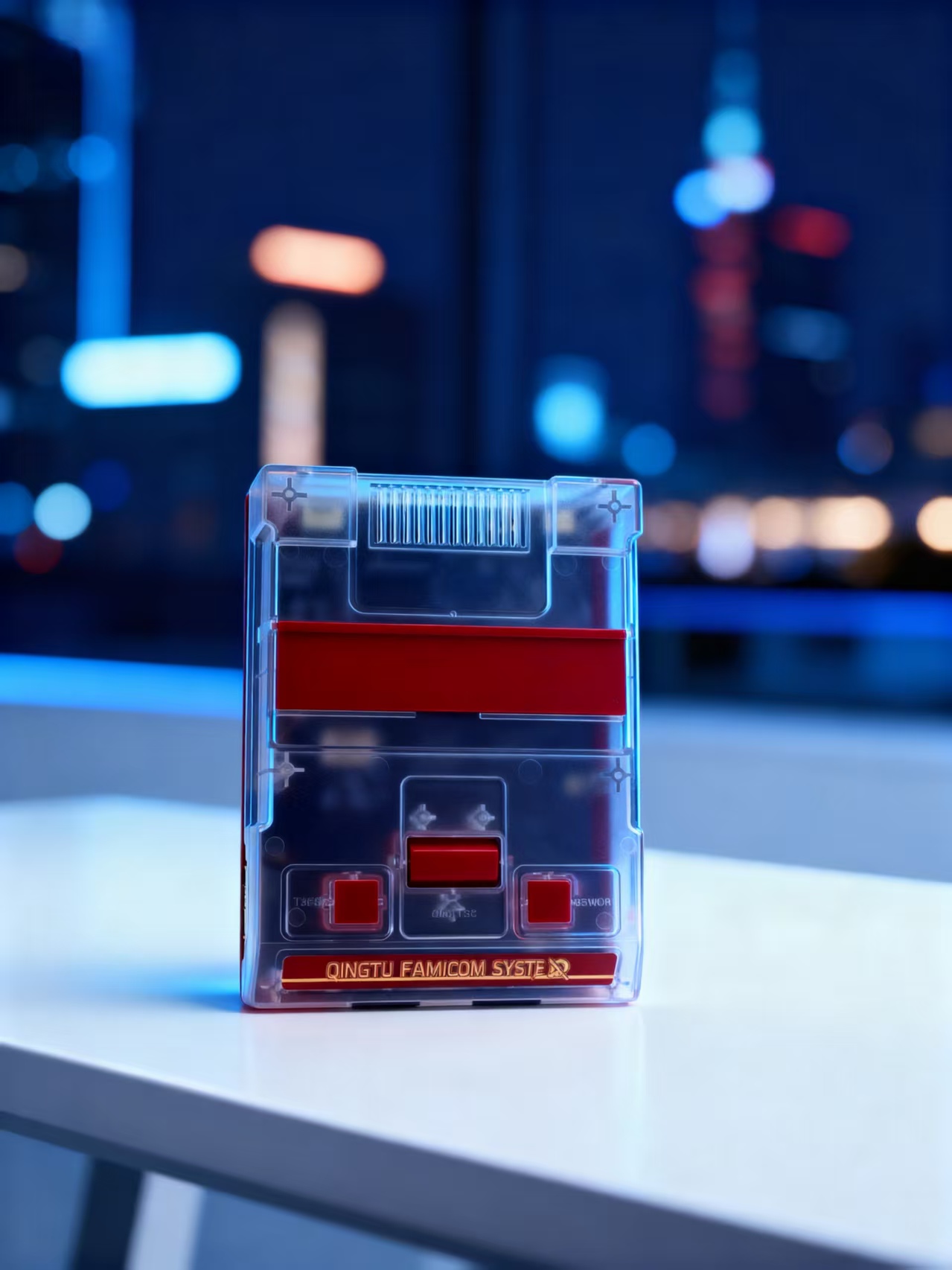

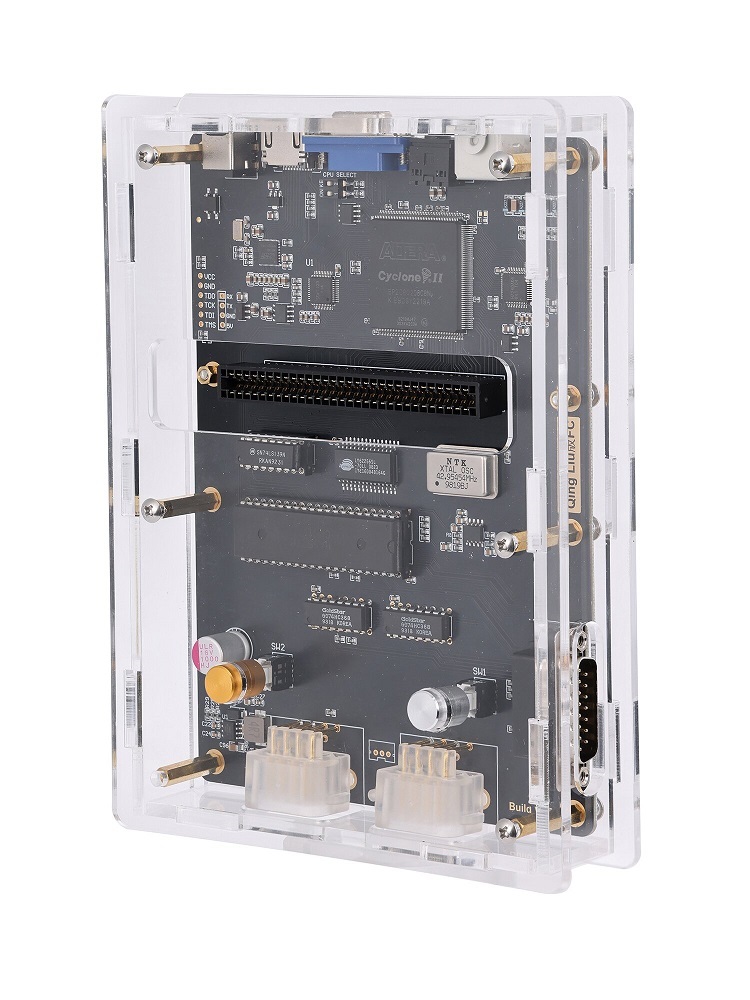

RGB FC Qingliu Game Console：The implementation principle of the QING LIU version FC is based on an analog PPU solution, with the FPGA main control being EP2c5t144c8n. The meaning behind this circuit board is that it serves as a time interface connecting the past and the future - every chip holds the unforgettable memories of games. It is not just cold hardware but carries the passion and dreams. Qingliu allows the nostalgia of retro games to quietly flow in modern technology.
Product Introduction: 1. High-quality gold-plated 4-layer PCB, newly designed handle socket + gold-plated pins; 2. Supports 5 signal outputs: HDMI, VGA, RGBS, S-Video, and CVBS (AV); 3. High-definition VGA, low-resolution RGBS, S-Video, and CVBS (AV) can be output simultaneously without the need for a switch; 4. Supports 4 palettes: FCEUX, NTSC, PAL, and PC-10; 5. VGA and HDMI support 480P and 720P output; 6. The handle can switch palettes, reset, scan lines, and resolution; 7. Audio uses operational amplifiers and supports special sound effect cartridges, with outstanding sound quality; 8. Supports the official Nintendo 15P expansion port, compatible with light guns, disk drives, and various other peripherals; 9. 74LS139 and 74HC368 use native chips, not CPLD simulation, so there are no hidden bugs like palette dropouts or certain controllers not working as seen in copycat solutions; 10. 7-pin handle socket, 9-12V power supply, polarity doesn't matter; 11. Full-screen and full-speed operation in N format, supports PAL, Dendy, and NTSC CPU formats. Operation Instructions: Function settings are completed by holding down the 1P handle for 3 seconds with the following combination keys: - Select + Start + Up to switch palettes; - Select + Start + Right to toggle scan lines; - Select + Start + Left to switch resolutions; - Select + Start + B to reset the game console.

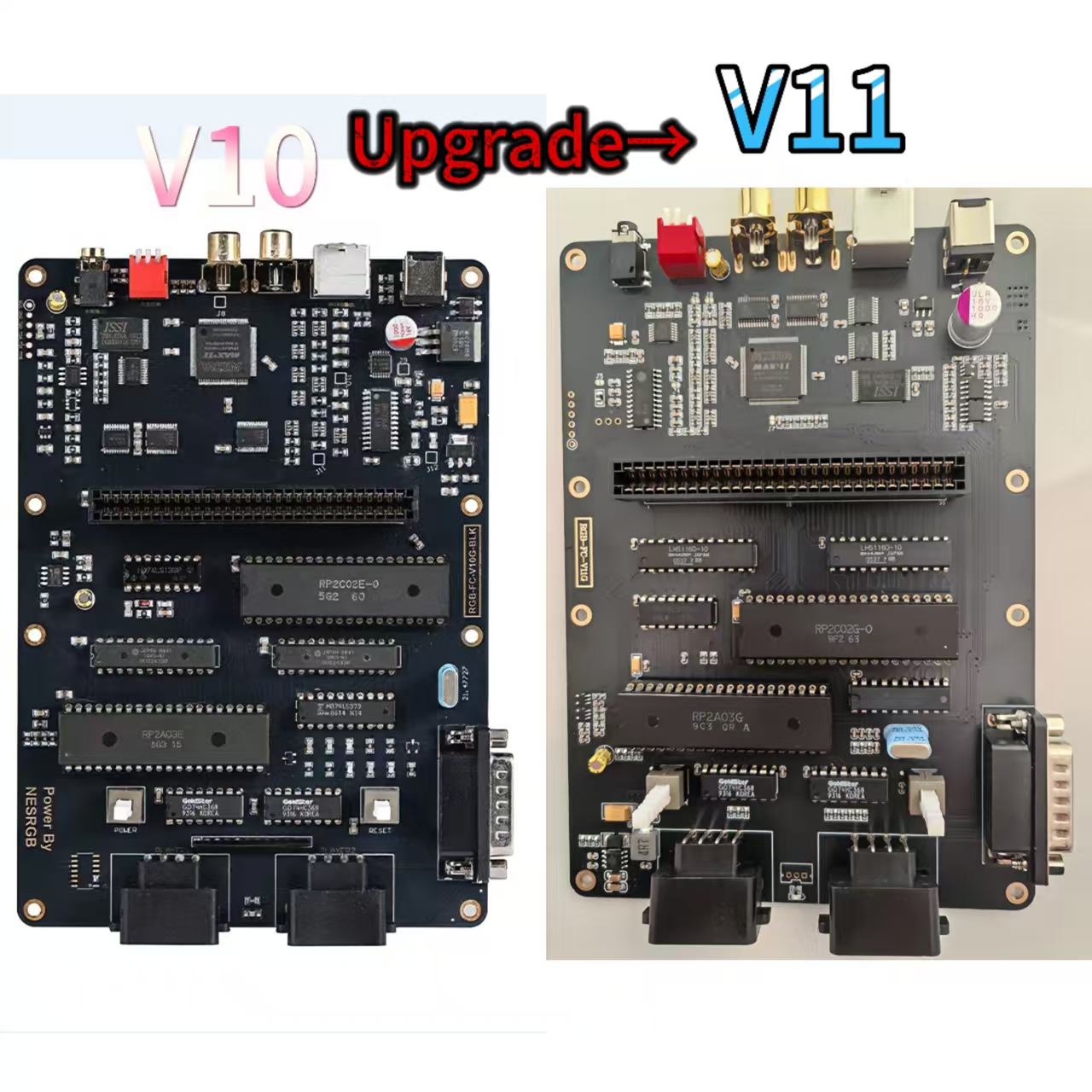

The V11 retro gaming console motherboard carries not only intricate circuits but also the youthful code of a generation. The neatly arranged chips resemble fragments of memory, with solder points flowing with the adventurous spirit of an 8-bit pixel world, while the metal ports seem to still wait for the insertion of time-traveling game cartridges—it uses the poetic arrangement of electronic components to tell the craftsmanship philosophy that 'pixels may be small, yet they can hold an entire childhood.'

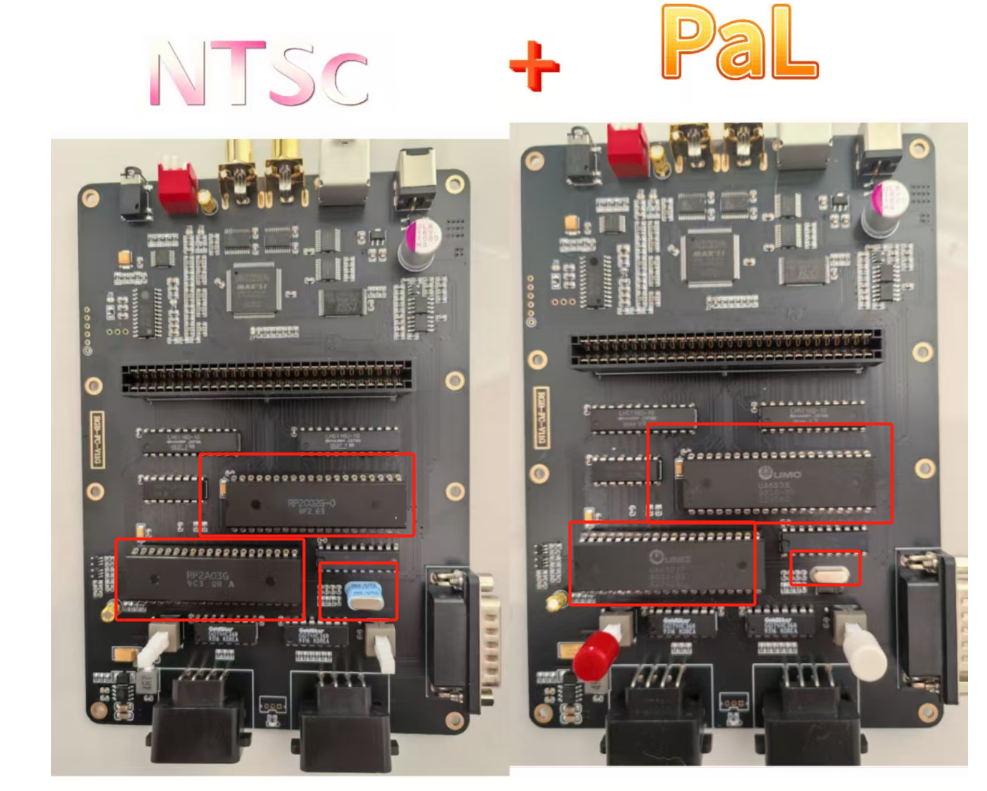

Function Introduction: Support RGBS, S-Video and AV output; 2. Supports switching among three color palettes; 3. Output via the standard Sega Saturn SS interface; 4. The power supply uses 9 to 12V, with no polarity distinction. 5. It adopts the operational amplifier TDA1308, providing good sound quality and clear picture quality. 6. Self-developed motherboard, original CPU + PPU are well compatible. 7.Supports NTSC and PAL
